OBH Mechanical Hinged Bow Spring Centralizer

• Hinged Bow Spring Centralizers
• S2 Hinged Bow Spring Centralizer
• OBH-W welded hinged Bow Spring Centralizer
• OBH Mechanical Hinged Bow Spring Centralizer

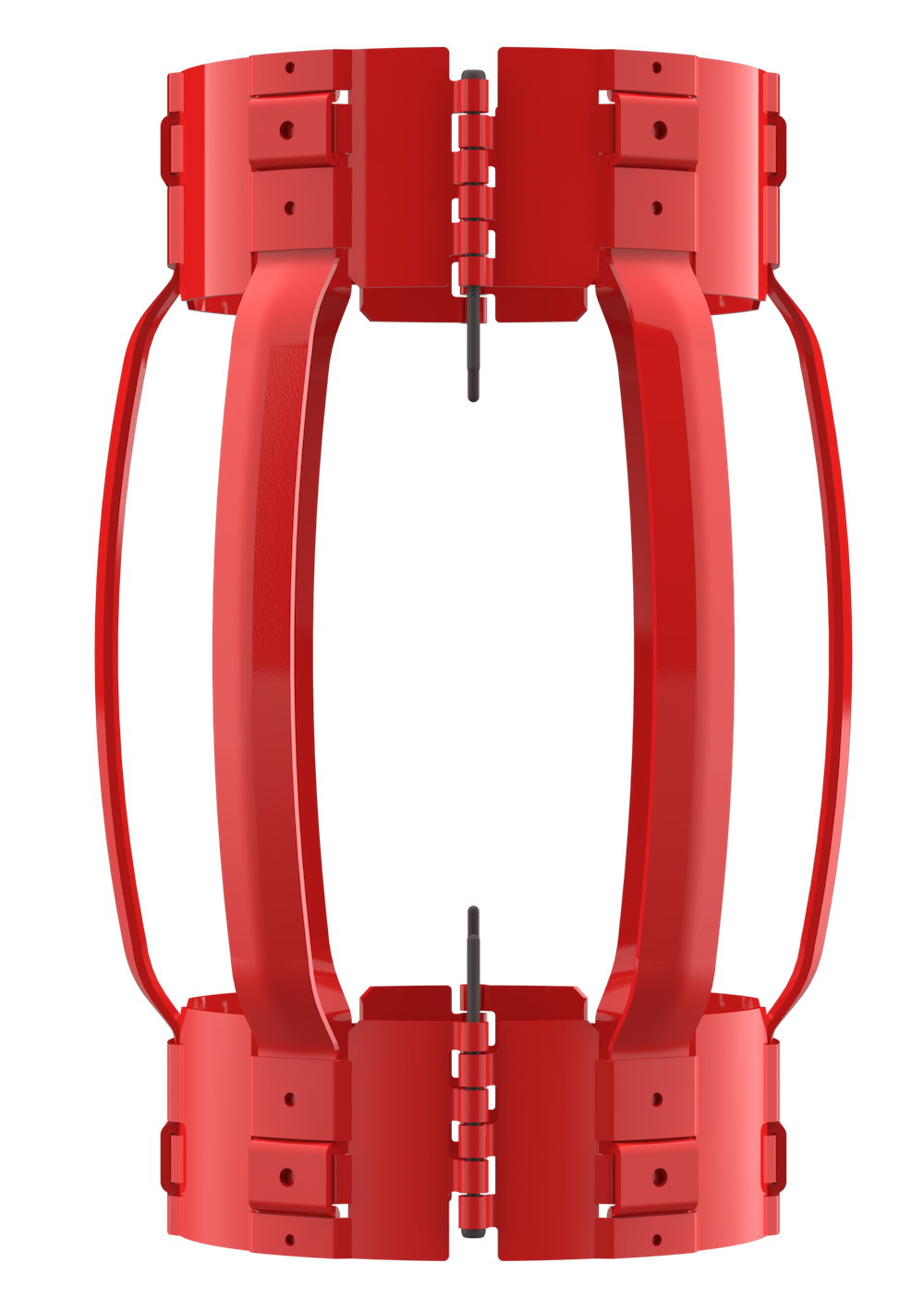

The Centek OBH centralizer combines high performance with easy field assembly, making it ideal for onshore wells, including vertical and slightly deviated applications. Its innovative design allows it to be nested on a pallet, reducing delivery and storage costs by up to 30% compared to non-hinged centralizers. The OBH is engineered for durability and efficiency in the field, delivering consistent performance while simplifying logistics for operators.

Constructed from high-quality alloy steel, the OBH’s bow springs are hot bent to shape using precision dies and undergo a controlled heat treatment process to ensure uniform spring characteristics. Designed to exceed API 10D standards, the OBH offers an extended profile and is also compatible with a hinged stop collar, providing a versatile solution for wells with build rates under 10° per 100 feet and depths under 10,000 feet. Its ease of assembly and robust construction make it a dependable choice for applications where slip-on centralizers cannot be used.

Features and benefits:

• Designed to exceed API 10D
• Extended profile
• Easy field assembly

Targeted applications

• Onshore
• Vertical and slightly deviated wells
• Reach <10,000 ft
• Build rates of < 10 degrees / 100’
• Applications where slip-on centralizer can’t be use

Stop collars

A redesigned stop collar has been developed using the same technology. Holding forces are comparable to Centek’s industry leading single piece stop collar range

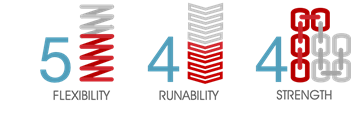

Performance ratings

Centralization and the ease of running casing is often a balance between strength and flexibility which combine to support, what we call, 'runability'. To help with product selection we've added a rating to all our products for flexibility, runability and inherent strength.

Sizing

Available to suit casing sizes ranging from 4 1/2 to 26"

For more information talk to our Product Service Experts today or use our Product Selector Tool to find the right product for your application.
