One of the most important steps in ensuring successful cementing is effective mud removal from inside casing as well as outside the casing. Failure to remove drilling mud properly can potentially lead to channeling, voids, and weak points in the cement sheath, which can, in a worst case scenario, compromise the well’s zonal isolation, lead to gas migration, or even cause well failures. Optimizing mud removal is therefore essential for creating a solid and continuous cement barrier that seals the wellbore.

Why Mud Removal Matters in Cementing Operations

Drilling mud is essential during the drilling process for maintaining wellbore stability, cooling the drill bit, and transporting cuttings to the surface. However, when it’s time to cement the well, the drilling mud must be fully displaced by the spacer, chemical wash, and cement slurry. Inefficient mud displacement can significantly impact the integrity of the cement and compromise the required zonal isolation:

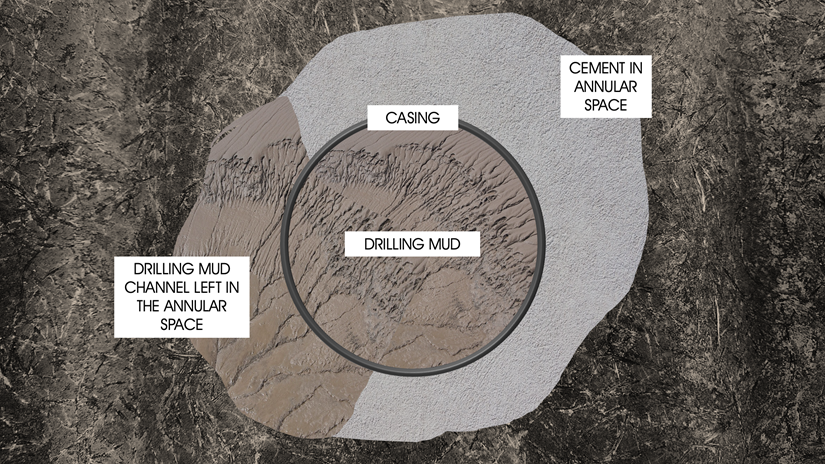

• Channeling: When mud is left in the annulus, it can form narrow channels or gaps between the cement and the casing or wellbore. These channels provide pathways for gas or fluid migration, jeopardizing the integrity of the cement sheath and compromising the well’s ability to isolate different zones.
• Weak Points in the Cement Sheath: Residual mud can prevent cement from bonding properly to the casing or wellbore. This results in weak points in the cement sheath, reducing the effectiveness of the seal and potentially leading to casing corrosion, gas leaks, or formation damage.
• Inadequate Zonal Isolation: Proper zonal isolation depends on a continuous, robust cement barrier. If mud is not fully displaced, the cement may not provide the full coverage needed to isolate different pressure zones within the well, which can lead to long-term operational issues or well failure.
• Unsustainable Casing Pressure: Residual mud mixing with cement can result in a slurry with suboptimal compressive strength. Over time, this can lead to cracking as the cement fails to withstand formation movement, allowing fluids or gases to migrate to the surface.

Thorough mud removal is critical to achieving a uniform cement sheath and ensuring long-term well integrity. By prioritizing proper mud displacement, operators can minimize risks and enhance the durability of the cement barrier.

How Made-to-Gauge Single-Piece Centralizers Improve Mud Removal

Centralizers play a critical role in the efficiency of mud removal and cementing operations by keeping the casing centralized in the wellbore. This allows for a more uniform annular space, which facilitates the displacement of drilling mud and even distribution of cement slurry. Made-to-gauge single-piece centralizers, specifically designed for these well conditions, offer significant advantages over conventional centralizers in improving mud removal.

Here’s how they do it:

1. Maximizing Flow-By Area:
   Single-piece centralizers are engineered to provide optimal stand-off—the space between the casing and the wellbore. By maximizing this Flow-By Area, they enable higher fluid velocities, which is essential for displacing mud more effectively. This increased flow creates turbulent flow regimes, which are particularly effective at removing mud that may cling to the casing or the wellbore. Turbulent flow helps break up and carry away mud, preventing it from being trapped and forming channels.
2. Uniform Annular Clearance:
   One of the key advantages of made-to-gauge single-piece centralizers is their ability to maintain consistent standoff throughout the wellbore, even in deviated or horizontal sections. This uniform clearance ensures that the mud can be evenly displaced across the entire annulus. Traditional centralizers, especially solid ones, often lead to low side conditions, where mud accumulates in certain areas because the annular space is reduced or uneven. In contrast, single-piece centralizers eliminate these dead zones by keeping the casing evenly centralized, leading to better mud displacement.
3. Improved Fluid Dynamics:
   Centralizers like the Centek single-piece centralizers are designed with fluid dynamics in mind. Their shape and construction allow for smoother fluid paths, which means less obstruction to mud flow during displacement. These centralizers facilitate better movement of both the mud and cement, creating a more uniform fluid distribution in the annulus. This helps to minimize areas where mud might stagnate or remain attached to the casing, ensuring more complete removal.
4. Enhanced Pipe Movement:
   During cementing operations, pipe movement—either reciprocation or rotation—is often employed to enhance mud removal and cement placement. Single-piece centralizers with a smooth profile and high flexibility allow for better pipe movement, which aids in breaking up mud that may have adhered to the casing or wellbore. This movement helps sweep the mud out of the annulus, ensuring that the cement slurry can properly bond to the casing and wellbore, further minimizing the risk of weak points.

Additional Benefits of Using Single-Piece Centralizers

Apart from improving mud removal, made-to-gauge single-piece centralizers offer several other advantages that contribute to better cementing outcomes:

• Durability and Strength: These centralizers are built from a single piece of material, eliminating the risk of weak points or joints that can break under downhole conditions. This ensures that they maintain their performance throughout the cementing operation, even in challenging well environments.
• Adaptability to Well Conditions: Made-to-gauge centralizers can be custom-designed to fit the specific dimensions and requirements of the well, ensuring that they provide optimal standoff and fluid flow tailored to the well’s unique geometry.
• Reduced Risk of Differential Sticking: By maintaining consistent centralization and enhancing fluid flow, single-piece centralizers help reduce the risk of differential sticking, a common issue that can occur when uneven mud removal creates pressure imbalances in the wellbore.

Conclusion

Effective mud removal is essential for achieving uniform cementing and avoiding the risks of channeling, voids, and weak points in the cement sheath. Poor mud displacement can compromise the integrity of the well and lead to costly and potentially dangerous consequences. Made-to-gauge single-piece centralizers, with their ability to enhance fluid flow, maintain consistent standoff, and facilitate pipe movement, play a critical role in improving mud removal and ensuring uniform cement placement. By optimizing these factors, operators can achieve more reliable well integrity, extend the life of the well, and reduce the risks of operational issues down the line.

Incorporating advanced centralizer designs like those offered by Centek can make a significant difference in the success of cementing operations, delivering stronger, more reliable wells with fewer long-term problems.

---

---
